Product Catalog for Attachment Solutions for Automotive Accessories

Printer-friendly format Printer-friendly format 3M™ Pressure Sensitive Acrylic Foam Tapes

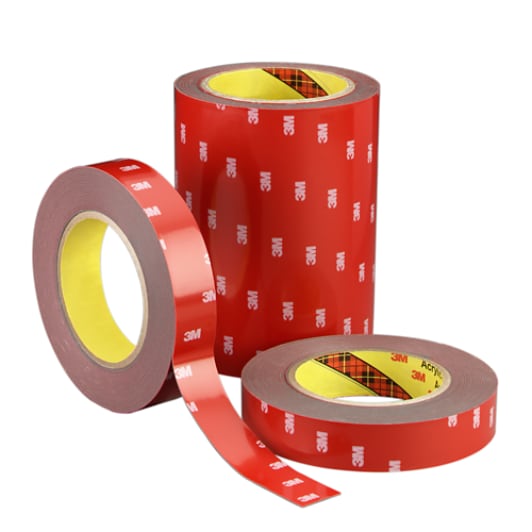

Photo: 3M™ Acrylic Foam Tape 4229P [click to enlarge]
3M™ Acrylic Foam Tapes are proven high-performance attachment systems for bonding automotive accessory and trim parts. These double-coated tapes combine acrylic adhesives with viscoelastic foam cores.

Additional Information

More than just a "tape," 3M attachment system products are backed by a full range of support services to assure that performance meets the specific product and design engineering requirements of a given application. By successfully satisfying individual automotive model program requirements since 1978, these tapes have changed the way that automotive companies and aftermarket trim and
Full Text . . .

Make a Selection
Photo: 3M™ Acrylic Plus Tape Body Side Molding 3M™ Pressue Sensitive Acrylic Foam Tape 4220, White, 45 mil
3M™ Pressure Sensitive Acrylic Foam Tape 4220 is a 1.14 mm (0.045 in) thick, white, double-coated acrylic foam tape commonly used for the attachment of automotive exterior trim parts such as body side moldings. This product does not have a printed liner.

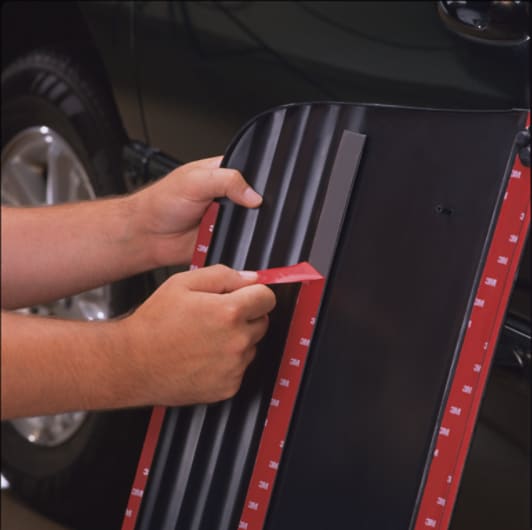

Photo: 3M™ Acrylic Foam Tape Liner Removal 3M™ Pressure Sensitive Acrylic Foam Tape 4218P, Dark Gray, Red Printed Liner, 45 mil
3M™ Pressure Sensitive Acrylic Foam Tape 4218 is a 1.14 mm (0.045 in) thick, gray, double-coated acrylic foam tape commonly used for the attachment of automotive exterior trim parts such as body side moldings. It has a red polyethylene release liner imprinted with the 3M logo.

Photo: 3M™ Acrylic Plus Tape Body Side Molding 3M™ Pressure Sensitive Acrylic Foam Tape 4225, White, 125 mil
3M™ Pressure Sensitive Acrylic Foam Tape 4225 is a 3.18 mm (0.125 in) thick, white, double-coated acrylic foam tape used in a variety of automotive applications where bonding surface contours are poorly matched and a thick foam is required. This product does not have a printed liner.

Photo: 3M™ Acrylic Foam Tape 4229P 3M™ Pressure Sensitive Acrylic Foam Tape 4229P, Dark Gray, Red Printed Liner, 30 mil
3M™ Pressure Sensitive Acrylic Foam Tape 4229P is a 0.76 mm (0.030 in) thick, gray, double-coated acrylic foam tape commonly used for the attachment of automotive exterior trim parts such as body side moldings. It has a red polyethylene release liner imprinted with the 3M logo.

Photo: 3M™ Acrylic Foam Tape - Wood Dash Install Step 7 3M™ Pressure Sensitive Acrylic Foam Tape 4257, Gray, 15 mil
3M™ Pressure Sensitive Acrylic Foam Tape 4257 is a 0.38 mm (0.015 in) thick, gray, double-coated acrylic foam tape used in a variety of automotive applications where bonding surfaces are well matched or where the parts to be bonded are thin and flexible. This product does not have a printed liner.

3M™ Acrylic Foam Plus Tapes Body Side Molding Application 3M™ Pressure Sensitive Acrylic Foam Tape 5314, Gray, 30 mil
3M™ Pressure Sensitive Acrylic Foam Tape 5314 is a 0.76 mm (0.030 in) thick, gray, double-coated acrylic foam tape commonly used for the attachment of automotive exterior trim parts such as body side moldings. This product does not have a printed liner.

3M™ Acrylic Foam Plus Tapes Body Side Molding Application 3M™ Pressure Sensitive Acrylic Foam Tape 5344, Gray, 45 mil
3M™ Pressure Sensitive Acrylic Foam Tape 5344 is a 1.14 mm (0.045 in) thick, gray, double-coated acrylic foam tape commonly used for the attachment of automotive exterior trim parts such as body side moldings. This product does not have a printed liner.

3M™ Acrylic Foam Plus Tapes Chrome Vent Visor 6 3M™ Pressure Sensitive Acrylic Foam Tape 5356, Gray, 60 mil
3M™ Pressure Sensitive Acrylic Foam Tape 5356 is a 1.52 mm (0.060 in) thick, gray, double-coated acrylic foam tape used for the attachment of a variety of automotive exterior trim parts. This product does not have a printed liner.

3M™ Acrylic Foam Plus Tapes Chrome Vent Visor 6 3M™ Pressure Sensitive Acrylic Foam Tape 5390, Gray, 90 mil
3M™ Pressure Sensitive Acrylic Foam Tape 5390 is a 2.29 mm (0.090 in) thick, gray, double-coated acrylic foam tape used in a variety of automotive applications where bonding surface contours are poorly matched and a thick foam is required. This product does not have a printed liner.

3M™ Acrylic Foam Plus Tapes Chrome Vent Visor 6 3M™ Pressure Sensitive Acrylic Foam Tape 5567, Gray, 60 mil
3M™ Pressure Sensitive Acrylic Foam Tape 5567 is a 1.52 mm (0.060 in) thick, gray, double-coated acrylic foam tape used for the attachment of a variety of automotive exterior trim parts. This product does not have a printed liner.

3M™ Acrylic Foam Plus Tapes Chrome Vent Visor 6 3M™ Pressure Sensitive Acrylic Foam Tape 5605, Gray, 45 mil
3M™ Pressure Sensitive Acrylic Foam Tape 5605 is a 1.14mm (0.045 in) thick, gray, double-coated acrylic foam tape designed for the primerless attachment of thermoplastic polyolefin (TPO) and polypropylene (PP) injection molded trim parts to the exteriors of vehicles. This product does not have a printed liner.

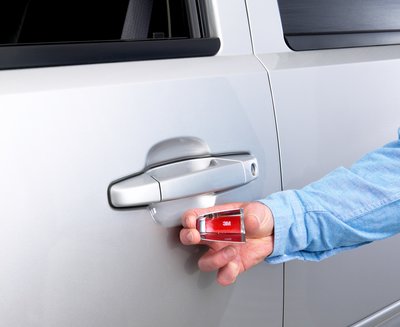

3M™ Acrylic Foam Plus Tapes Chrome Door Handle Cover App 3M™ Pressure Sensitive Acrylic Foam Tape 5665P, Gray, 30 mil
3M™ Pressure Sensitive Acrylic Foam Tape 5665P is a 0.76 mm (0.030 in) thick, gray, double-coated acrylic foam tape designed for the attachment of lightweight automotive exterior trim. This product does have a printed liner.

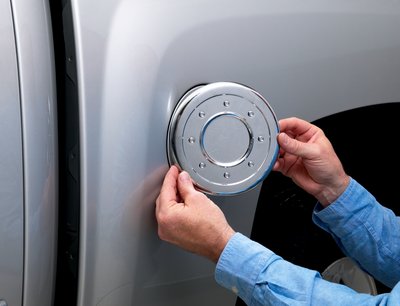

3M™ Acrylic Foam Plus Tapes Holding Silverado Fuel Cover 3M™ Pressure Sensitive Acrylic Foam Tape 5674, Gray, 45 mil
3M™ Pressure Sensitive Acrylic Foam Tape 5674 is a 1.14 mm (0.045 in) thick, gray, double-coated acrylic foam tape designed for the attachment of emblems, nameplates, moldings, step pads and other automotive trim. This product does not have a printed liner.

Photo: 3M™ Primerless Acrylic Foam Tape Wood Dash 3M™ Pressure Sensitive Primerless Acrylic Foam Tape 5849, Gray, Red Printed Liner, 20 mil
3M™ Pressure Sensitive Primerless Acrylic Foam Tape 5849 is a 20-mil thick, medium-density, dark gray acrylic foam, with TX-1 and DS-4 adhesives on the liner and non-liner sides of the product, respectively. It has a red colored easy-release liner imprinted with 3M logos.

Photo: 3M™ Acrylic Foam Tape - Wood Dash Install Step 7 3M™ Pressure Sensitive Primerless Acrylic Foam Tape 5850, Gray, Red Liner, 30 mil
3M™ Pressure Sensitive Primerless Acrylic Foam Tape 5850 is a .030-inch thick, medium-density, gray acrylic foam, with TX-1 and DS-4 adhesives on the liner and non-liner sides of the product, respectively. It has a red colored easy-release liner with imprinted 3M logos.
